Rsydw No Partial Discharge Oil Immersed Test Transformer ISO Certification

Name: Rsydw No Partial Discharge Oil Immersed Test Transformer ISO Certification
Brand: RISING
Price: 1 USD

Brand Name : RISING

Model Number : RSYDW

Certification : ISO CE

Place of Origin : China

MOQ : 1 SET

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 SET PER Month

Packaging Details : Wooden package

Product type : AC, AC cascade

Rated : 5—1000kVA

Input voltage : AC 220V / AC 380V

Output voltage : AC 0—1000kV、DC 0—1400kV

Impedance voltage : <10 %

No-load current : <10 %

Temperature rise : <55℃

No-load loss : 0.2 %—0.35 %

Contact Now

Rsydw No Partial Discharge Oil Immersed Test Transformer ISO Certification

Product Description

RSYDW series No Partial Discharge oil-immersed test transformer is our company introduce and absorb advanced foreign technology, design development manufacturing of transformer partial discharge electrician frequency experiment, widely used in electrical appliances, cable, motors, transformers, transformer, insulation materials and related high voltage components manufacturers, as well as electric power, high voltage laboratory research and colleges and universities, but its products are partial discharge and power frequency withstand voltage test. Accord with DL417-2006, JB/T9641-1999, GB1094.1-1094.5-2008, GB6451.1-6451.5-1995 standard requirements, etc.

Feature/Function

1.Mixer adopt oil type epoxy cylinder and pneumatic cylinder structure, with the native bureau of small volume, low loss, light weight, low waveform distortion, etc, advanced and reliable performance.

2.The test process is simple and intuitive, operators cheap line;

3. Mixer can effectively eliminate clutter interference of power supply;

4. Mixer adopts automatic control technology, high automation degree, strong anti-interference ability;

5. The mixer adopts fast electronic protection device, high reliability.

Product Tags:

ground resistance tester

capacitance inductance tester

Quality Rsydw No Partial Discharge Oil Immersed Test Transformer ISO Certification wholesale

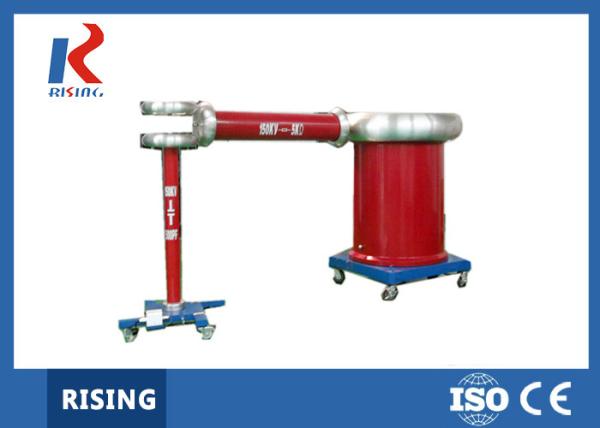

Rsydw No Partial Discharge Oil Immersed Test Transformer ISO Certification Images
